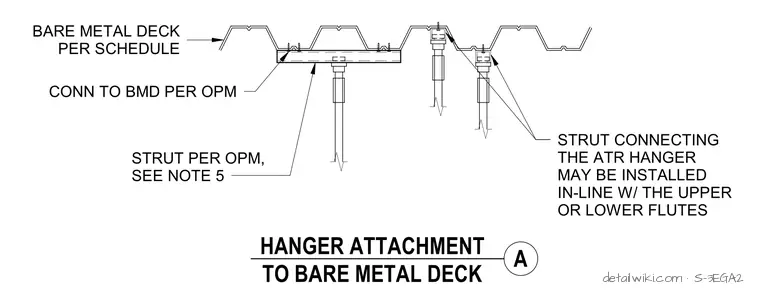

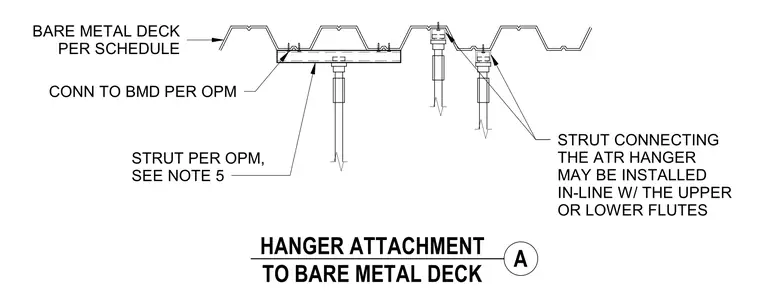

An adjustable threaded rod hanger attaches to a bare metal deck per the project schedule. Connection to the bare metal deck is made per the approved proprietary manufacturer specifications. A strut connecting the anchor rod hanger is installed inline with either the upper or lower flutes of the metal deck.
CONN TO BMD PER OPM STRUT PER OPM, SEE NOTE 5 STRUT CONNECTING THE ATR HANGER MAY BE INSTALLED IN-LINE W/ THE UPPER OR LOWER FLUTES HANGER ATTACHMENT TO BARE METAL DECK A BARE METAL DECK PER SCHEDULE
