Structural · S-3EDC6

Braced Frame Baseplate Detail

Materials

Elements

Floors / Slabs Bracing Connections / Plates Reinforcing

Connections

Braced Frame Connection Gusset Plate Base Plate / Anchorage Bracing Connection Welded Connection Bolted Connection Rebar Splice / Development

About this detail

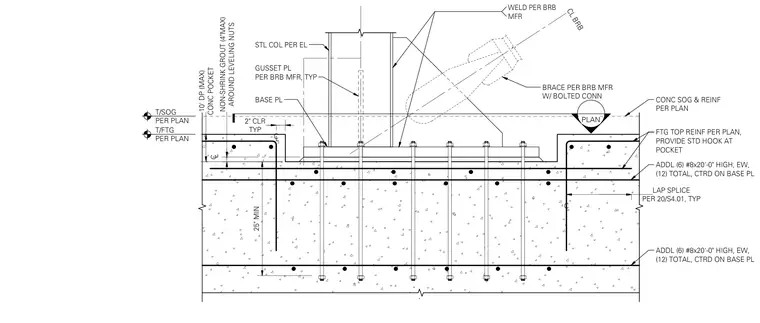

A structural steel column rests on a base plate supported by anchor bolts embedded in a concrete footing with a maximum ten-foot deep concrete pocket. A gusset plate connects to the base plate and column flange, receiving a buckling-restrained brace with a bolted connection and manufacturer-specified welds. Non-shrink grout fills a four-maximum-inch gap around the leveling nuts beneath the base plate. Additional eight-bar reinforcing groups span each way centered on the base plate, while footing top reinforcing features standard hooks at the pocket.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
