Structural · S-3EBFJ

Welded Corebrace at Foundation

Materials

Concrete Steel Masonry / CMU

Elements

Columns Floors / Slabs Foundations / Footings Connections / Plates

Connections

Gusset Plate Welded Connection

About this detail

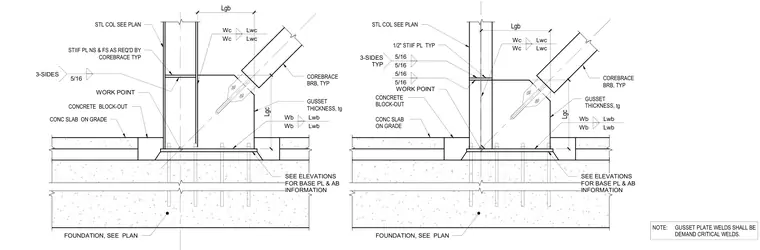

A structural steel column is anchored to a concrete foundation with base plates and anchor bolts sized per plan, surrounded by a concrete slab on grade with a concrete block-out. A Corebrace buckling-restrained brace connects to a gusset plate welded to the column and base assembly with five-sixteenth-inch fillet welds on three sides. Stiffener plates are welded near the column connection on the near side and far side as required by the brace manufacturer. A general note mandates that all gusset plate welds shall be demand critical welds.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
