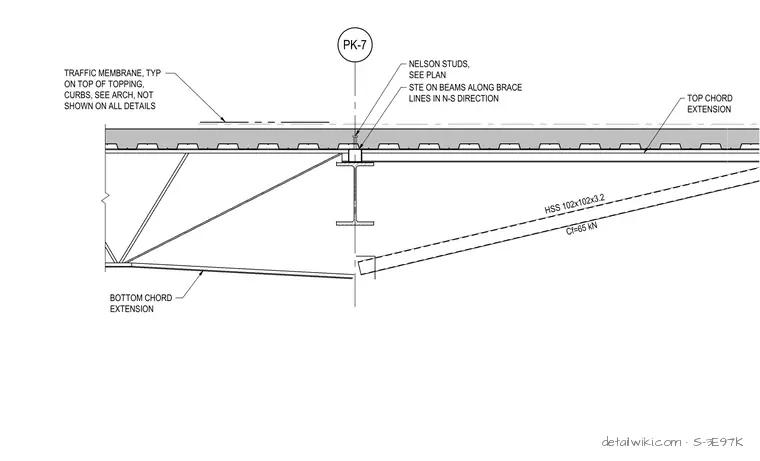

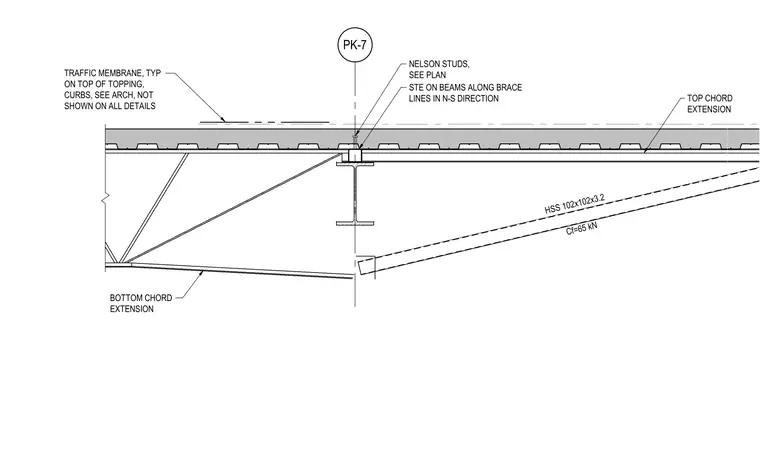

A steel joist with a top chord extension and a bottom chord extension bears over a supporting steel beam. Nelson studs are provided on beams along brace lines in the north-south direction, sized per plan. A hollow structural section brace with dimensions of 102x102x3.2 and a design force of 65 kN ties into the assembly. A traffic membrane is applied on top of the concrete topping and curbs per architectural drawings.
PK-7 TOP CHORD EXTENSION HSS 102x102x3.2 Cf=65 kN BOTTOM CHORD EXTENSION NELSON STUDS, SEE PLAN STE ON BEAMS ALONG BRACE LINES IN N-S DIRECTION TRAFFIC MEMBRANE, TYP ON TOP OF TOPPING, CURBS, SEE ARCH, NOT SHOWN ON ALL DETAILS
