Structural · S-3E5ZB

Finished Column End Stiffener Plate Connection

Materials

Connections

About this detail

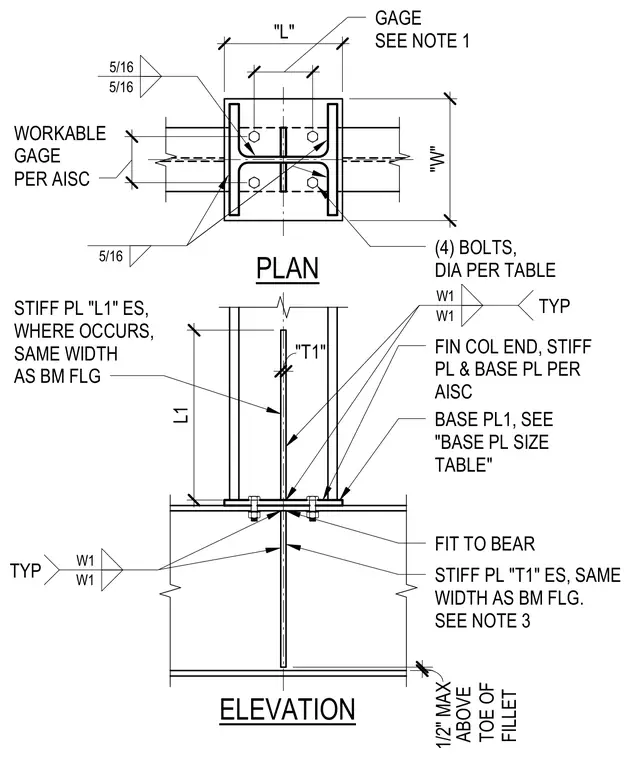

This structural detail shows a finished column end with stiffener plates and a base plate sized per the AISC standards and drawing tables. The plan view details a four-bolt layout with a workable gage. Stiffener plates L1 and T1 are positioned on each side, matching the width of the beam flange and fitted to bear. Fillet welds of five-sixteenths inch size connect the assembly elements. The elevation view indicates placement limits above the toe of the fillet.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
