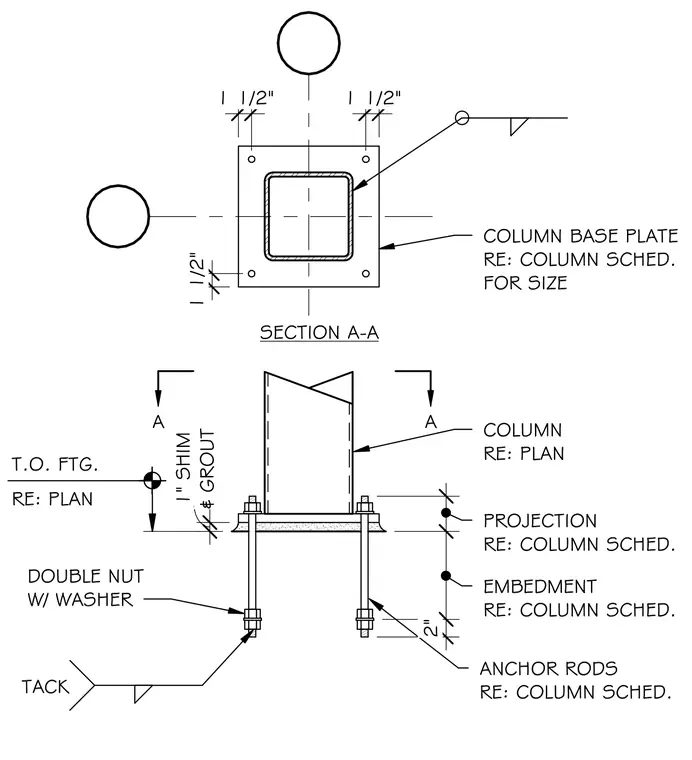

A hollow structural section steel column connects to a base plate welded to the column perimeter and anchored to a concrete footing. Anchor rods with double nuts and washers secure the assembly, seated above a one-inch leveling grout space set above the top of the footing. Dimensions indicate a one-and-one-half-inch edge distance from the anchor rods to the edge of the base plate. Rod embedment, projection, and plate sizes are sized per the column schedule.
COLUMN BASE PLATE RE: COLUMN SCHED. FOR SIZE SECTION A-A A A & GROUT 1" SHIM T.O. FTG. RE: PLAN PROJECTION RE: COLUMN SCHED. EMBEDMENT RE: COLUMN SCHED. COLUMN RE: PLAN ANCHOR RODS RE: COLUMN SCHED. DOUBLE NUT W/ WASHER TACK 2" 1 1/2" 1 1/2" 1 1/2"
