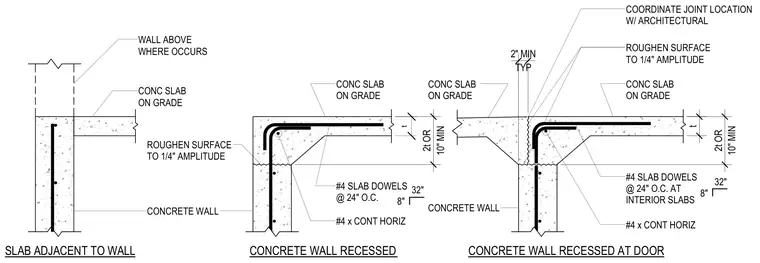

This concrete detail shows the intersection between a concrete wall and a concrete slab-on-grade, featuring multiple conditions including an adjacent slab, a recessed wall, and a wall recessed at a door. The concrete slab-on-grade connects to the vertical concrete wall with number four slab dowels spaced at twenty-four inches on center, supplemented by number four continuous horizontal rebar. The construction joint is coordinated with the architectural layout, and the contact surface is roughened to a quarter-inch amplitude. The slab thickness is specified as dimension t or a minimum of two times t or ten inches.
SLAB ADJACENT TO WALL CONCRETE WALL RECESSED CONCRETE WALL RECESSED AT DOOR CONCRETE WALL CONC SLAB ON GRADE CONC SLAB ON GRADE CONC SLAB ON GRADE #4 SLAB DOWELS @ 24" O.C. #4 x CONT HORIZ ROUGHEN SURFACE TO 1/4" AMPLITUDE ROUGHEN SURFACE TO 1/4" AMPLITUDE #4 SLAB DOWELS @ 24" O.C. AT INTERIOR SLABS #4 x CONT HORIZ 8" 32" 10" MIN 2t OR t 10" MIN 2t OR CONCRETE WALL CONC SLAB ON GRADE WALL ABOVE WHERE OCCURS TYP 2" MIN 8" 32" COORDINATE JOINT LOCATION W/ ARCHITECTURAL t
