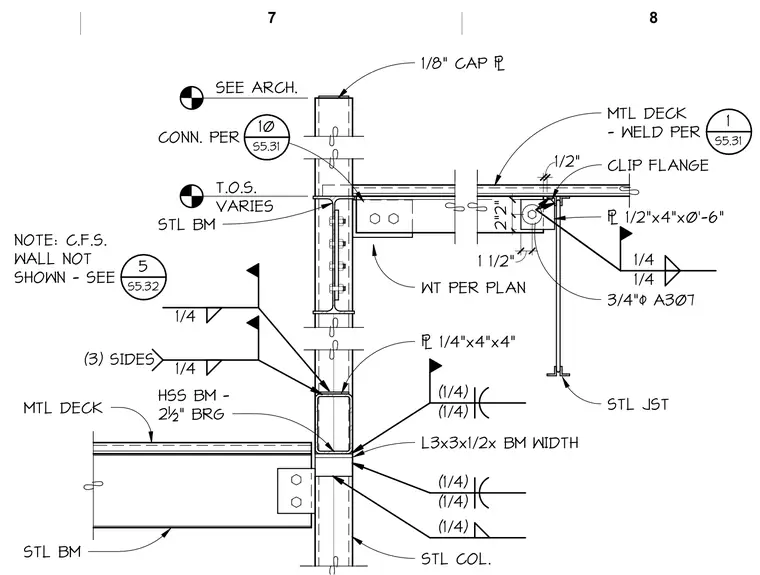

A steel joist bears onto a structural steel beam via a clip flange comprising a one-half-inch by four-inch by zero-foot-six-inch steel plate and a three-quarter-inch diameter A307 bolt, with a one-quarter-inch fillet weld connecting the clip flange to the assembly. A hollow structural section beam with two and one-half inches of bearing supports a metal deck, while an angle measuring three by three by one-half inches matches the beam width and is welded with one-quarter-inch welds on three sides. A one-eighth-inch cap plate caps the hollow structural section column, and additional WT sections and steel beams frame into the column flanges with bolted connections. A cold-formed steel wall is noted as omitted from the view and referenced elsewhere on the drawings.
5 S5.32 SEE ARCH. T.O.S. VARIES 2"2" 1 1/2" 1/2" 1/4 1/4 CLIP FLANGE 1/2"x4"x0' -6" STL JST 3/4" A307 WT PER PLAN STL BM 1/4 1/4 (3) SIDES (1/4) (1/4) (1/4) (1/4) (1/4) 1/4"x4"x4" STL COL. NOTE: C.F.S. WALL NOT SHOWN - SEE HSS BM - 2½" BRG MTL DECK STL BM 1/8" CAP CONN. PER 10 S5.31 MTL DECK - WELD PER 1 S5.31 L3x3x1/2x BM WIDTH 7 8
