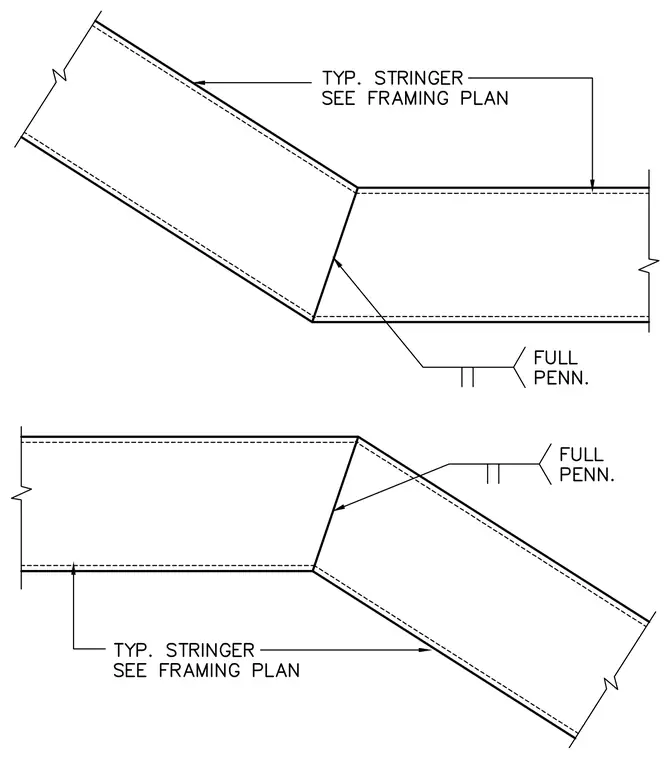

A typical stair stringer splice or angle change connection where structural members are joined with a full penetration weld. The stringers, sized per the framing plan, meet at an angular intersection. The joint is fully welded across the mating surfaces with a full penetration weld symbol.
