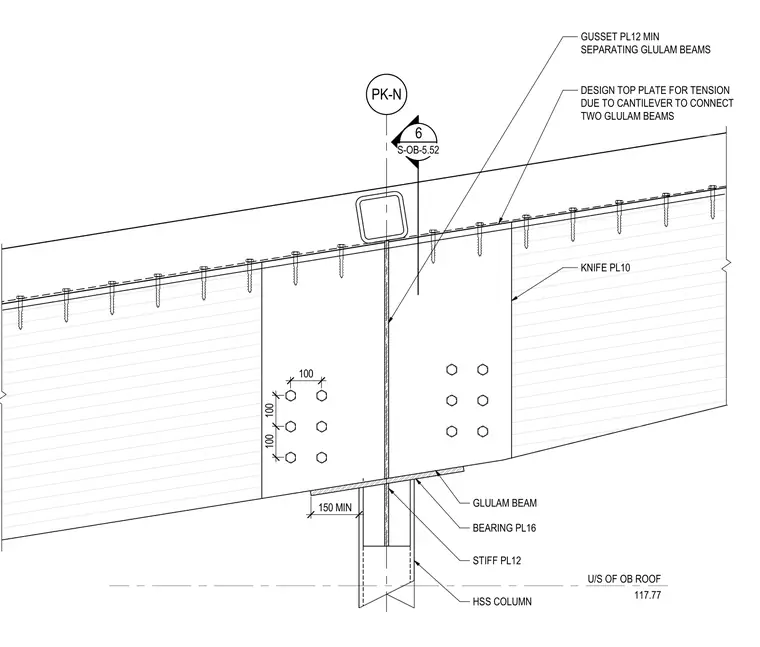

This connection details a glulam beam bearing on a hollow structural section column with a 16-millimeter bearing plate and a 12-millimeter stiffener plate. A 10-millimeter knife plate extends vertically into the glulam beams, paired with a 12-millimeter gusset plate separating the beams. Fasteners are arranged with 100-millimeter spacings. A top plate is designed for tension due to cantilever to connect two glulam beams. The underside of the roof is referenced at elevation 117.77.
PK-N 6 S-OB-5.52 GLULAM BEAM HSS COLUMN BEARING PL16 KNIFE PL10 GUSSET PL12 MIN SEPARATING GLULAM BEAMS STIFF PL12 100 100 100 U/S OF OB ROOF 117.77 150 MIN DESIGN TOP PLATE FOR TENSION DUE TO CANTILEVER TO CONNECT TWO GLULAM BEAMS
