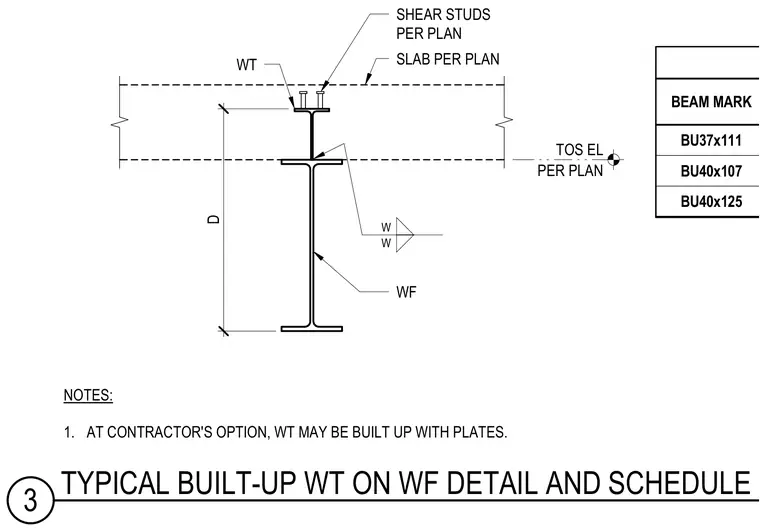

A built-up structural tee section sits atop a wide-flange steel beam, embedded within a concrete slab per plan. Shear studs are welded through the slab into the top flange of the tee section. The structural tee may be fabricated from plates at the contractor's option. A schedule lists beam marks including BU37x111, BU40x107, and BU40x125.
WT SLAB PER PLAN SHEAR STUDS PER PLAN W W PER PLAN TOS EL WF 38 5/8" D NOTES: 1. AT CONTRACTOR'S OPTION, WT MAY BE BUILT UP WITH PLATES. 3 TYPICAL BUILT-UP WT ON WF DETAIL AND SCHEDULE BU40x125 BU40x107 BU37x111 BEAM MARK
