Structural · S-3C35C

Alternate Beam to HSS Column Connection

Materials

Steel

Elements

Columns Beams Walls Connections / Plates

Connections

HSS Connection

About this detail

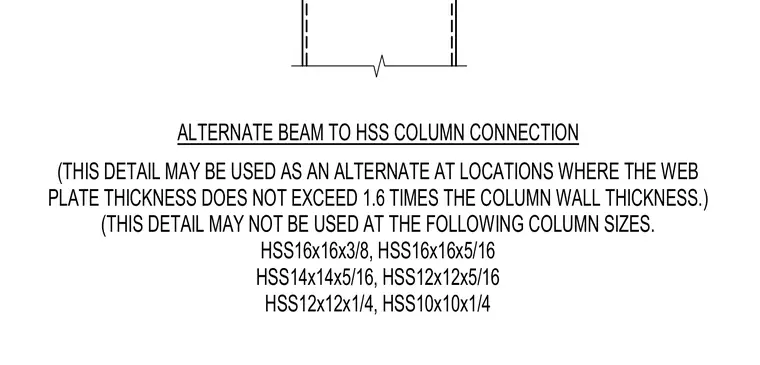

An alternate beam to hollow structural section column connection is detailed for steel framing applications. This detail applies at locations where the web plate thickness does not exceed 1.6 times the column wall thickness. It contains specific exclusions and may not be used with certain hollow structural section column sizes including HSS16x16x3/8, HSS16x16x5/16, HSS14x14x5/16, HSS12x12x5/16, HSS12x12x1/4, and HSS10x10x1/4.
