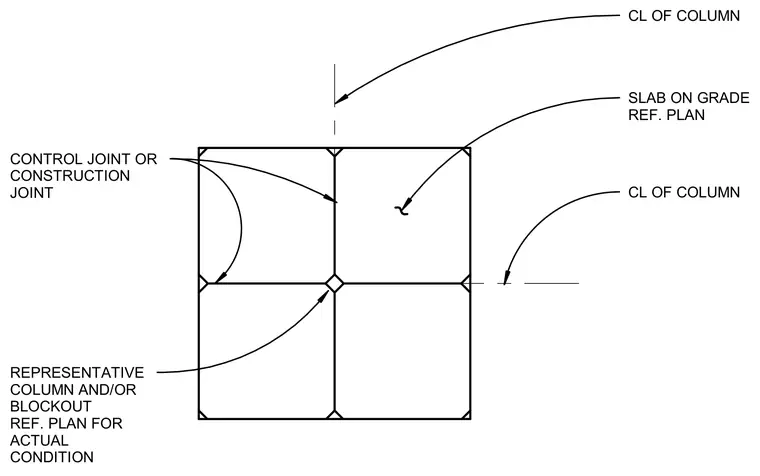

This structural plan detail shows the layout of slab on grade control joints or construction joints aligned with column centerlines. Representative column and blockout reference plans dictate actual site conditions. The joint intersections coordinate with the column grid for crack control in concrete slabs.
REPRESENTATIVE COLUMN AND/OR BLOCKOUT REF. PLAN FOR ACTUAL CONDITION SLAB ON GRADE REF. PLAN CONTROL JOINT OR CONSTRUCTION JOINT CL OF COLUMN CL OF COLUMN
