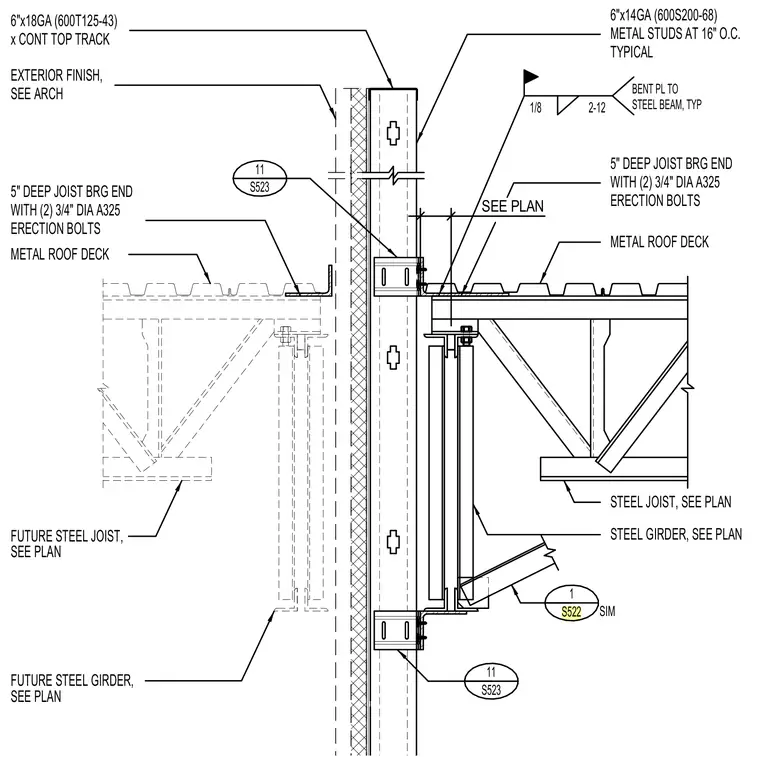

A five-inch deep steel joist bearing end connects to a steel girder sized per plan using two three-quarter-inch diameter ASTM A325 erection bolts. A metal roof deck spans across the steel joist assembly. The exterior wall framing consists of six-inch by fourteen-gauge metal studs spaced at sixteen inches on center with a continuous six-inch by eighteen-gauge top track. A bent plate connects to the steel beam with a one-eighth-inch fillet weld, and exterior finishes are coordinated per architectural drawings. Future steel joists and future steel girders are indicated for adjacent construction phases.
11 S523 11 S523 1 S522 SIM METAL ROOF DECK STEEL JOIST, SEE PLAN FUTURE STEEL JOIST, FUTURE STEEL GIRDER, 5" DEEP JOIST BRG END WITH (2) 3/4" DIA A325 ERECTION BOLTS 5" DEEP JOIST BRG END WITH (2) 3/4" DIA A325 ERECTION BOLTS METAL ROOF DECK 1/8 2-12 BENT PL TO STEEL BEAM, TYP 6"x18GA (600T125-43) x CONT TOP TRACK 6"x14GA (600S200-68) METAL STUDS AT 16" O.C. TYPICAL EXTERIOR FINISH, SEE ARCH STEEL GIRDER, SEE PLAN SEE PLAN SEE PLAN SEE PLAN
