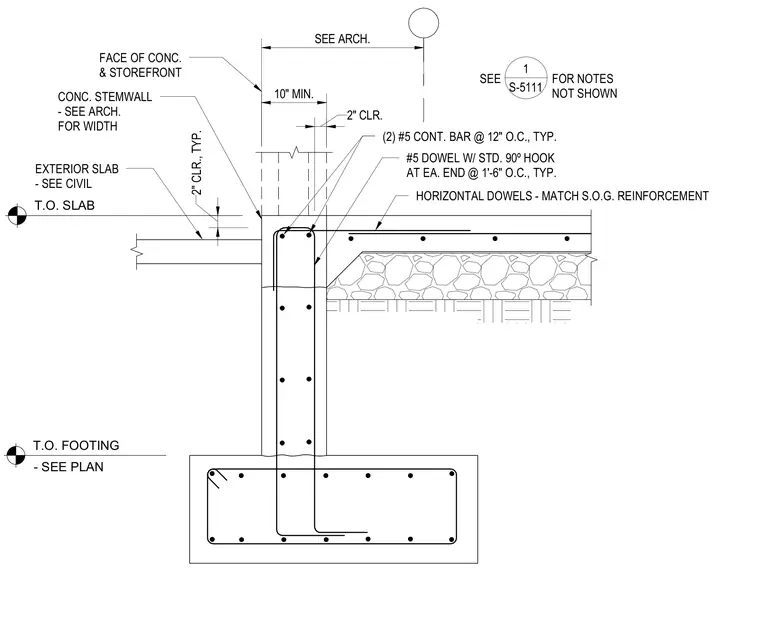

An exterior concrete stemwall rests on a continuous concrete footing with a top-of-footing elevation coordinated per plan. The stemwall features two continuous number five reinforcing bars placed at twelve inches on center with a typical two-inch clearance. Number five dowels with standard ninety-degree hooks at each end are spaced at one foot six inches on center. Horizontal dowels tie into the slab-on-grade reinforcement matching the interior slab conditions. An exterior slab transitions adjacent to the stemwall with dimensions and width coordinated with architectural and civil drawings.
SEE ARCH. FACE OF CONC. & STOREFRONT CONC. STEMWALL - SEE ARCH. FOR WIDTH T.O. FOOTING - SEE PLAN T.O. SLAB (2) #5 CONT. BAR @ 12" O.C., TYP. #5 DOWEL W/ STD. 90º HOOK AT EA. END @ 1'-6" O.C., TYP. 10" MIN. 2" CLR., TYP. EXTERIOR SLAB - SEE CIVIL 2" CLR. SEE FOR NOTES NOT SHOWN 1 S-5111 HORIZONTAL DOWELS - MATCH S.O.G. REINFORCEMENT
