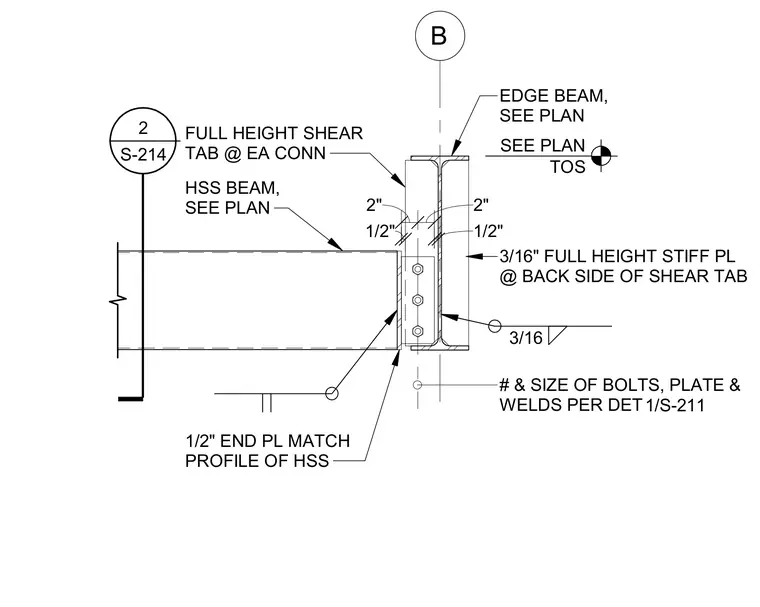

An HSS beam connects to an edge beam using a one-half-inch end plate that matches the profile of the hollow structural section. A full-height shear tab is located at each connection, backed by a three-sixteenth-inch full-height stiffener plate on the opposite side of the web. The connection is detailed with three-sixteenth-inch fillet welds. The number and size of bolts, plates, and welds conform to detail one on sheet S-211.
SEE PLAN TOS EDGE BEAM, SEE PLAN B 2" 2" 1/2" 1/2" 3/16 3/16" FULL HEIGHT STIFF PL @ BACK SIDE OF SHEAR TAB # & SIZE OF BOLTS, PLATE & WELDS PER DET --------- 1/S-211 1/2" END PL MATCH PROFILE OF HSS HSS BEAM, SEE PLAN FULL HEIGHT SHEAR TAB @ EA CONN 2 S-214 _______________
