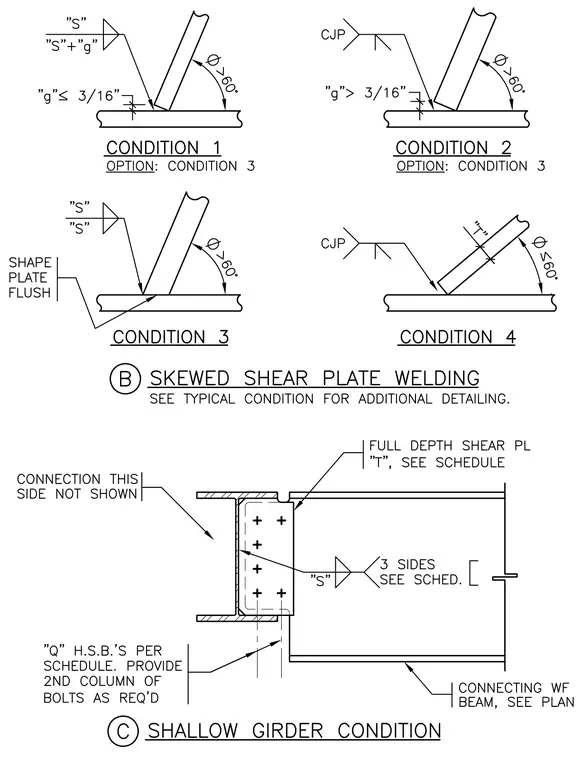

Condition 1 details a skewed plate weld with a gap less than or equal to three-sixteenths inches, utilizing specified fillet welds. Condition 2 shows a complete joint penetration weld for gaps greater than three-sixteenths inches with acute angles greater than sixty degrees. Condition 3 provides a flush shape plate option with standard fillet welding on both sides. Condition 4 applies to acute angles less than or equal to sixty degrees using a complete joint penetration weld with plate thickness T. The shallow girder condition details a connecting wide flange beam attached via a full depth shear plate of thickness T with high-strength bolts per schedule and a second column of bolts as required, welded on three sides.
