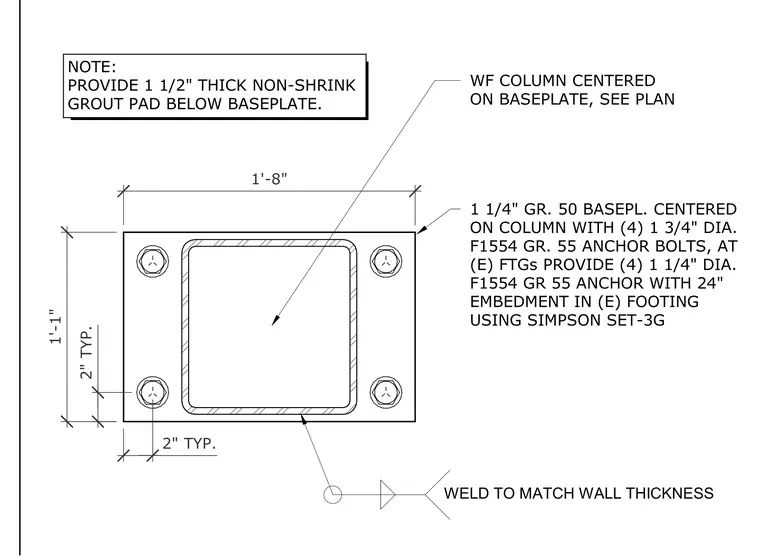

A wide flange column is centered on a one and one-quarter inch thick Grade 50 steel base plate. The assembly is secured to an existing footing using four one and one-quarter inch diameter F1554 Grade 55 anchor bolts with twenty-four inches of embedment, installed using Simpson SET-3G epoxy. The base plate measures one foot one inch by one foot eight inches, with anchor bolts positioned at a typical two-inch offset from the plate edges. A one and one-half inch thick non-shrink grout pad is required beneath the base plate. The column is welded to the base plate to match the wall thickness.
Text on the drawing
WF COLUMN CENTERED ON BASEPLATE, SEE PLAN 1 1/4" GR. 50 BASEPL. CENTERED ON COLUMN WITH (4) 1 3/4" DIA. F1554 GR. 55 ANCHOR BOLTS, AT (E) FTGs PROVIDE (4) 1 1/4" DIA. F1554 GR 55 ANCHOR WITH 24" EMBEDMENT IN (E) FOOTING USING SIMPSON SET-3G 1'-1" 1'-8" 2" TYP. 2" TYP. WELD TO MATCH WALL THICKNESS NOTE: PROVIDE 1 1/2" THICK NON-SHRINK GROUT PAD BELOW BASEPLATE. 18 SCALE: 1" = 1'-0" BRACED FRAME AT END COL. GRID S'
