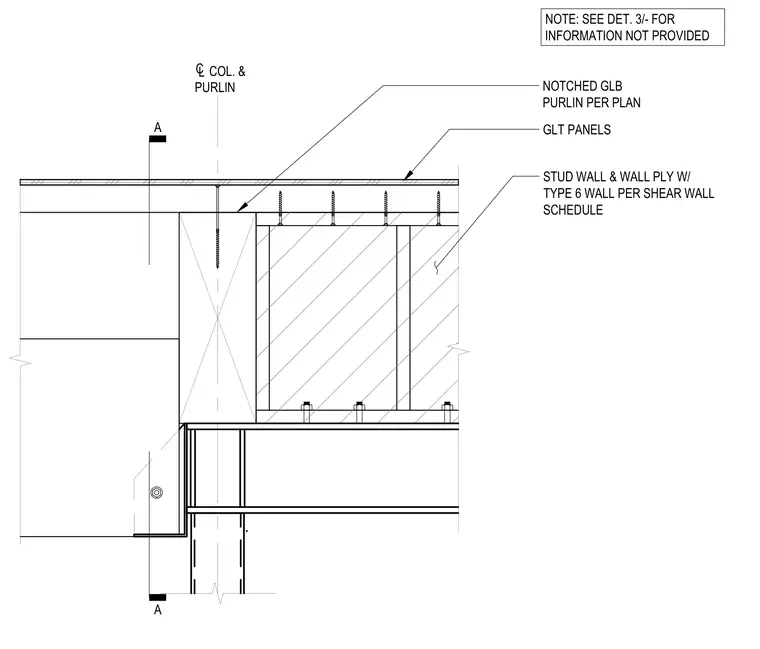

Glued-laminated timber panels bear on a notched glulam purlin aligned with a column centerline. The purlin fastens above to mass plywood panels and ties into the supporting stud wall assembly with wall plywood specified per the shear wall schedule.
GLT PANELS } COL. & PURLIN NOTCHED GLB PURLIN PER PLAN STUD WALL & WALL PLY W/ TYPE 6 WALL PER SHEAR WALL SCHEDULE NOTE: SEE DET. 3/- FOR INFORMATION NOT PROVIDED A A
