Structural · S-3B8WQ

BRBF Double Brace Beam Column Connection

Materials

Steel Metal (misc.)

Elements

Columns Beams Bracing Connections / Plates

Connections

Moment Connection Braced Frame Connection Gusset Plate Bracing Connection Welded Connection Bolted Connection

About this detail

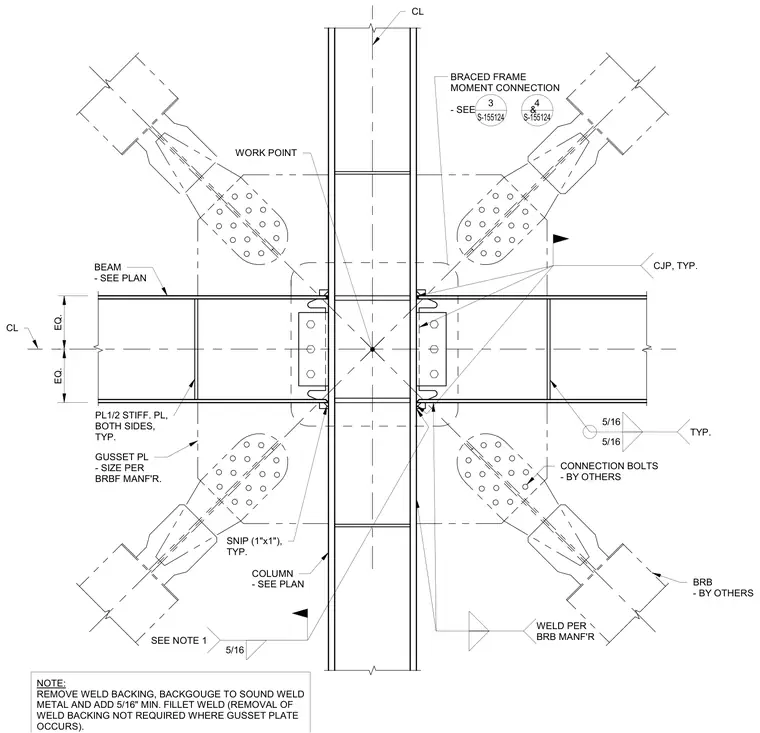

A buckling-restrained braced frame connects to a central steel column and intersecting beams using gusset plates sized per the manufacturer, with connection bolts provided by others. Half-inch stiffener plates are welded to both sides of the beams with complete joint penetration welds, featuring typical one-inch by one-inch snips. Welds are specified as five-sixteenths inch fillet welds typically, with complete joint penetration welds at the beam-column moment connections. Weld backing must be removed, backgouged to sound weld metal, and supplemented with a five-sixteenths inch minimum fillet weld where required.
