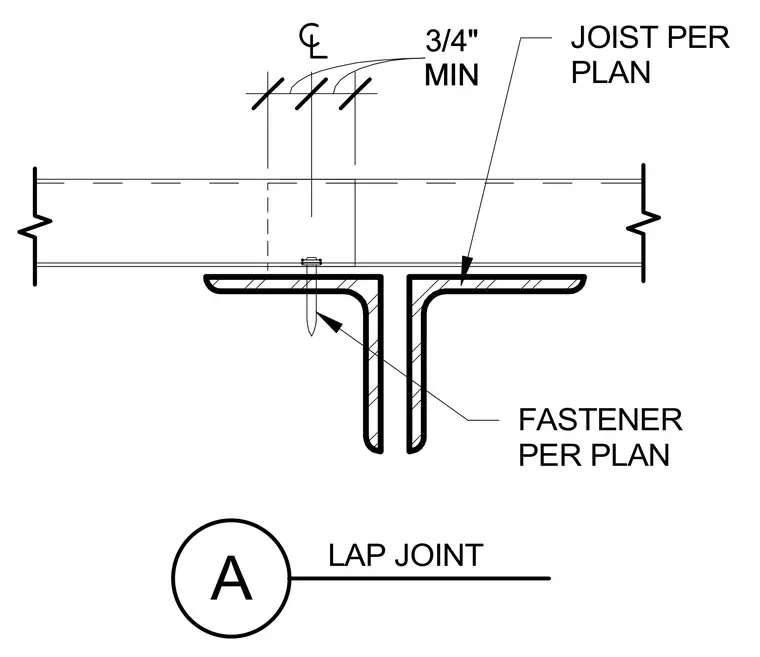

A lap joint connects structural framing members. The joist is positioned per plan and secured using fasteners sized and spaced per plan. A minimum clearance of three quarters of an inch is maintained at the joint layout.
