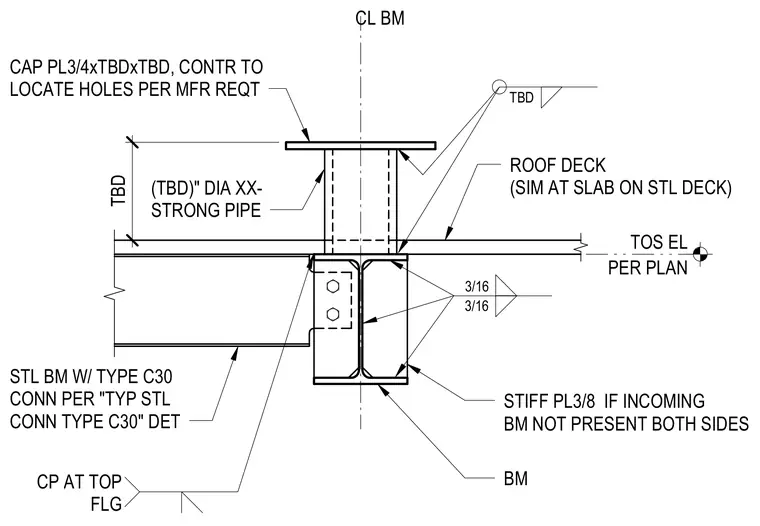

A structural pipe davit post is mounted over a steel beam supporting a roof deck. The post is capped with a three-quarter-inch thick plate with holes located per manufacturer requirements. Three-eighths-inch stiffener plates are provided at the top flange if the incoming beam is not present on both sides. A steel beam connects to the supporting column web with a type C30 connection. Fillet welds of three-sixteenths inch secure the assembly.
CAP PL3/4xTBDxTBD, CONTR TO LOCATE HOLES PER MFR REQT ROOF DECK (SIM AT SLAB ON STL DECK) BM PER PLAN TOS EL CP AT TOP FLG STIFF PL3/8 IF INCOMING BM NOT PRESENT BOTH SIDES STL BM W/ TYPE C30 CONN PER "TYP STL CONN TYPE C30" DET 3/16 3/16 CL BM (TBD)" DIA XX- STRONG PIPE TBD 10 1/2" TBD
