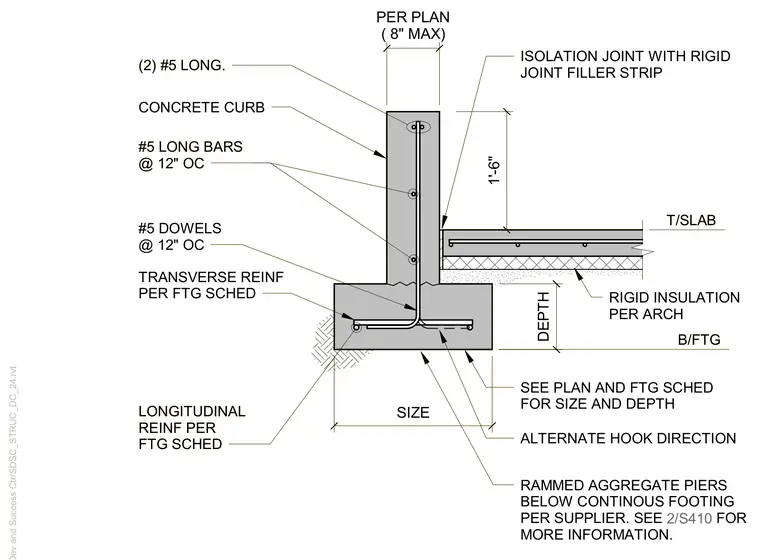

A continuous concrete footing supports a one foot six inch concrete curb alongside a concrete slab. The continuous footing is sized per plan and footing schedule, reinforced with longitudinal and transverse rebar, and supported by rammed aggregate piers below. Two number five longitudinal bars and number five long bars at twelve inches on center reinforce the concrete curb. Number five dowels at twelve inches on center tie the curb to the footing with alternate hook directions. An isolation joint with rigid joint filler strip separates the curb from the slab, while rigid insulation sits beneath the slab per architectural specifications.
B/FTG T/SLAB SEE PLAN AND FTG SCHED FOR SIZE AND DEPTH ALTERNATE HOOK DIRECTION DEPTH SIZE #5 DOWELS @ 12" OC LONGITUDINAL REINF PER FTG SCHED TRANSVERSE REINF PER FTG SCHED RAMMED AGGREGATE PIERS BELOW CONTINOUS FOOTING PER SUPPLIER. SEE 2/S410 FOR MORE INFORMATION. 1'-6" ISOLATION JOINT WITH RIGID JOINT FILLER STRIP CONCRETE CURB (2) #5 LONG. #5 LONG BARS @ 12" OC 2/S410 RIGID INSULATION PER ARCH PER PLAN ( 8" MAX) B/FTG T/SLAB SEE PLAN AND FTG SCHED FOR SIZE AND DEPTH ALTERNATE HOOK DIRECTION DEPTH SIZE #5 DOWELS @ 12" OC LONGITUDINAL REINF PER FTG SCHED TRANSVERSE REINF PER FTG SCHED RAMMED AGGREGATE PIERS BELOW CONTINOUS FOOTING PER SUPPLIER. SEE 2/S410 FOR MORE INFORMATION. 1'-6" ISOLATION JOINT WITH RIGID JOINT FILLER STRIP CONCRETE CURB (2) #5 LONG. #5 LONG BARS @ 12" OC 2/S410 RIGID INSULATION PER ARCH PER PLAN ( 8" MAX)
