Structural · S-3AYTV

Roof Overhang at Curtain Wall with Structural Steel Framing

Materials

Steel Timber / Wood

Elements

Beams Walls Windows Curtain Walls Roofs Decks Arches Bracing Connections / Plates

Connections

Bracing Connection Deck Attachment Timber / Mass-Timber Connection

About this detail

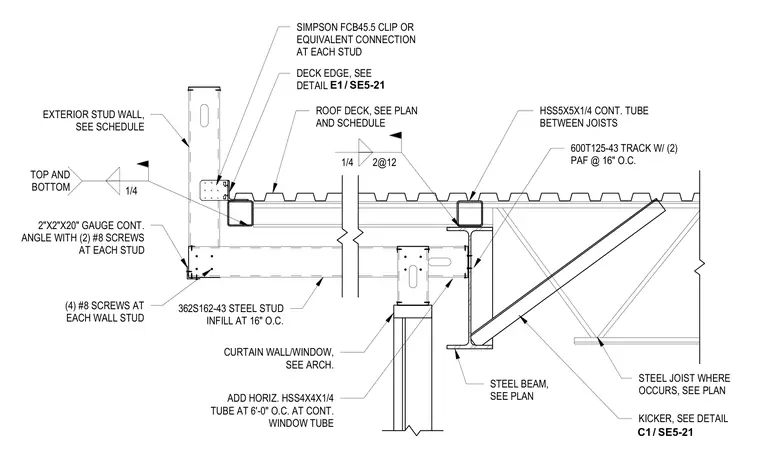

An exterior stud wall with 362S162-43 steel studs spaced at sixteen inches on center connects to the roof deck assembly, which is supported by steel beams and steel joists. A continuous 2-inch by 2-inch by 20-gauge angle attaches with two number eight screws at each stud, paired with Simpson FCB45.5 clips or equivalent connections. A continuous HSS5x5x1/4 tube spans between joists above the steel beam, while an additional horizontal HSS4x4x1/4 tube is placed at six-foot intervals at the continuous window tube. A 600T125-43 track fastens with powder-actuated fasteners at sixteen inches on center top and bottom, complemented by a diagonal kicker connected per detail C1/SE5-21.
