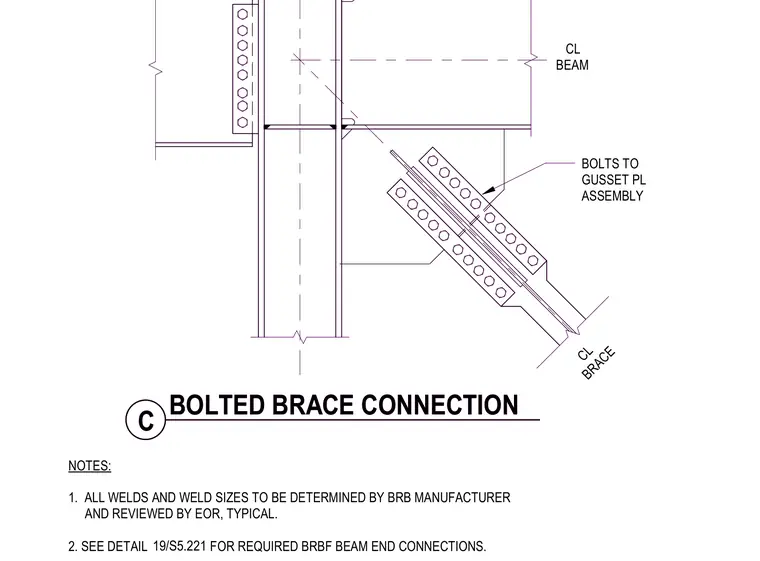

A bolted brace connection with a gusset plate assembly ties into a column and beam intersection. The diagonal brace connects to the gusset plate using a multi-bolt configuration along the centerline of the brace. Welds and weld sizes are designated to be determined by the buckling-restrained brace manufacturer and reviewed by the engineer of record. Additional framing requires coordination with the specified beam end connections.
CL BEAM BOLTS TO GUSSET PL ASSEMBLY CL BRACE C BOLTED BRACE CONNECTION NOTES: 1. ALL WELDS AND WELD SIZES TO BE DETERMINED BY BRB MANUFACTURER AND REVIEWED BY EOR, TYPICAL. 2. SEE DETAIL FOR REQUIRED BRBF BEAM END CONNECTIONS. 19/S5.221 CL BEAM BOLTS TO GUSSET PL ASSEMBLY CL BRACE C BOLTED BRACE CONNECTION NOTES: 1. ALL WELDS AND WELD SIZES TO BE DETERMINED BY BRB MANUFACTURER AND REVIEWED BY EOR, TYPICAL. 2. SEE DETAIL FOR REQUIRED BRBF BEAM END CONNECTIONS. 19/S5.221
