Rectangular or round openings up to six feet maximum dimension in slabs on grade require diagonal reinforcing bars placed at forty-five degrees across each corner. Two number four bars are centered within the slab thickness extending two feet beyond the opening corners typically. Openings less than two feet eliminate the diagonal bars and keyed joints. A keyed joint with centered reinforcement is detailed adjacent to the opening per structural notes.

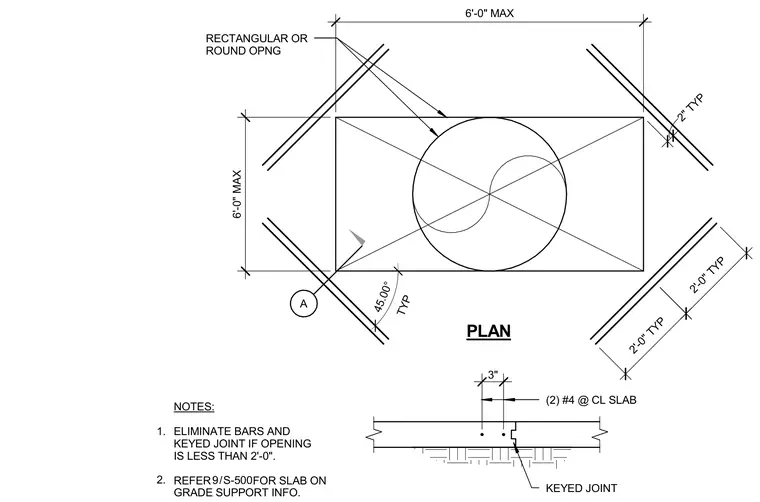

6'-0" MAX 2" TYP 2'-0" TYP 2'-0" TYP PLAN A RECTANGULAR OR ROUND OPNG 6'-0" MAX TYP 45.00° 3" (2) #4 @ CL SLAB KEYED JOINT NOTES: ELIMINATE BARS AND KEYED JOINT IF OPENING IS LESS THAN 2'-0". REFER FOR SLAB ON GRADE SUPPORT INFO. 1. 2. / 9 S-500
