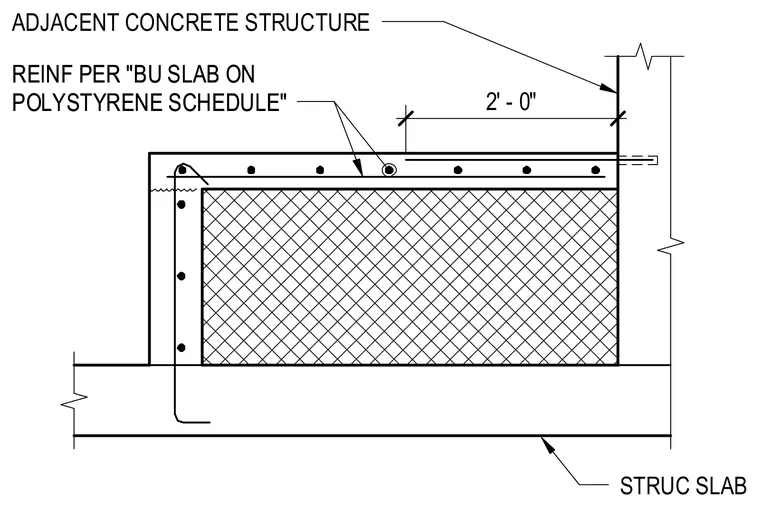

A built-up concrete slab is cast over a layer of polystyrene insulation, which bears directly on the supporting structural slab. Reinforcement for the slab is installed in accordance with the built-up slab on polystyrene schedule. The edge of the built-up slab is located two feet from the face of the adjacent concrete structure. Vertical and horizontal reinforcing bars tie the concrete assembly together at the edge.
STRUC SLAB REINF PER "BU SLAB ON POLYSTYRENE SCHEDULE" REINF PER "BU SLAB ON POLYSTYRENE SCHEDULE" 2' - 0" ADJACENT CONCRETE STRUCTURE
