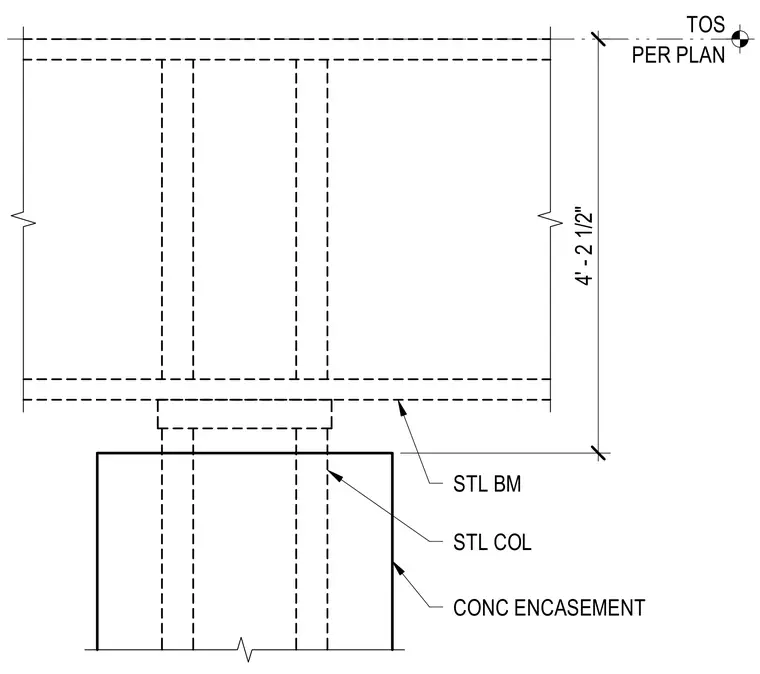

Concrete encasement surrounds a steel column intersecting a steel beam. The top of steel is positioned per plan with a height dimension of 4 feet 2-1/2 inches to the reference level. The steel column extends upward into the concrete encasement assembly below the steel beam framing.
