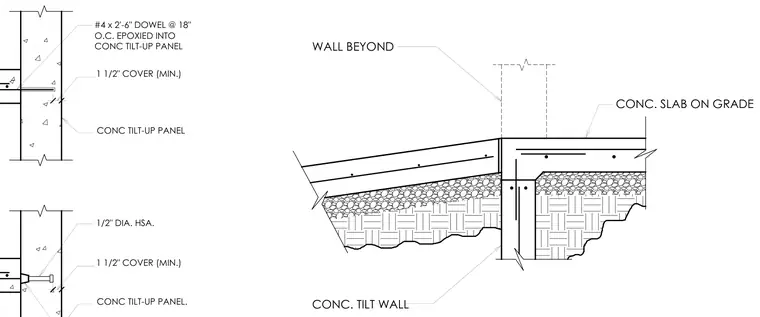

A concrete slab on grade ties into a concrete tilt-up wall using number 4 by two-foot-six-inch reinforcing dowels spaced at eighteen inches on center, epoxied directly into the concrete tilt-up panel. A one-half-inch diameter heavy stud anchor secures the assembly, maintaining a minimum one-and-one-half-inch concrete cover throughout.
1 1/2" COVER (MIN.) CONC TILT-UP PANEL CONC TILT-UP PANEL. 1/2" DIA. HSA. #4 x 2'-6" DOWEL @ 18" O.C. EPOXIED INTO CONC TILT-UP PANEL 1 1/2" COVER (MIN.) CONC. SLAB ON GRADE CONC. TILT WALL WALL BEYOND
