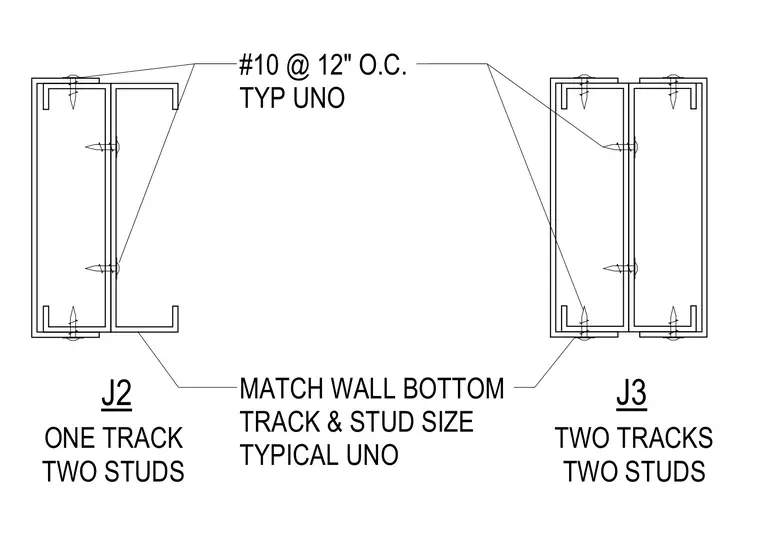

Cold-formed metal framing jamb details show configurations for single and double track assemblies with studs fastened using number ten screws at twelve inches on center typically unless noted otherwise. The assembly matches the wall bottom track and stud size typical unless noted otherwise, incorporating one track with two studs or two tracks with two studs.
J2 #10 @ 12" O.C. TYP UNO MATCH WALL BOTTOM TRACK & STUD SIZE TYPICAL UNO J3 ONE TRACK TWO STUDS TWO TRACKS TWO STUDS
