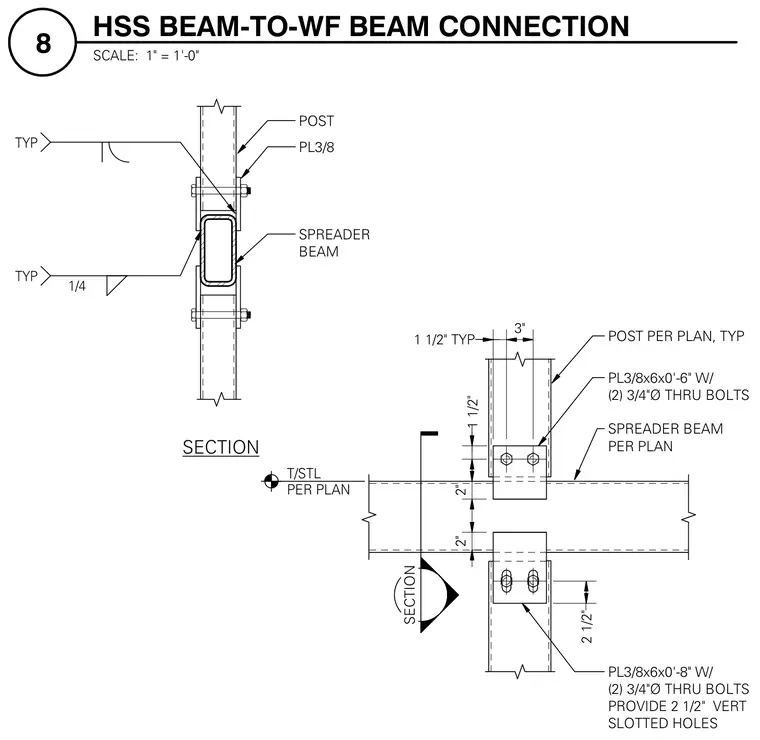

A post-to-spreader beam connection utilizes welded steel plates and through-bolts. The assembly consists of an HSS post framing into a structural spreader beam per plan, tied together with three-eighths-inch thick steel plates measuring three-eighths by six by zero-feet-six inches and three-eighths by six by zero-feet-eight inches. Connections are secured using two three-quarter-inch diameter through-bolts with two-and-a-half-inch vertical slotted holes provided for adjustability. Fillet welds sized at one-quarter inch are specified for the plate-to-member joints as typical.
SECTION POST PER PLAN, TYP SPREADER BEAM PER PLAN SECTION PL3/8x6x0'-6" W/ (2) 3/4"Ø THRU BOLTS 1 1/2" TYP 3" 2" 1 1/2" POST PL3/8 SPREADER BEAM TYP 1/4 TYP 2 1/2" PL3/8x6x0'-8" W/ (2) 3/4"Ø THRU BOLTS PROVIDE 2 1/2" VERT SLOTTED HOLES 2" T/STL PER PLAN SCALE: 1" = 1'-0" 8 HSS BEAM-TO-WF BEAM CONNECTION
