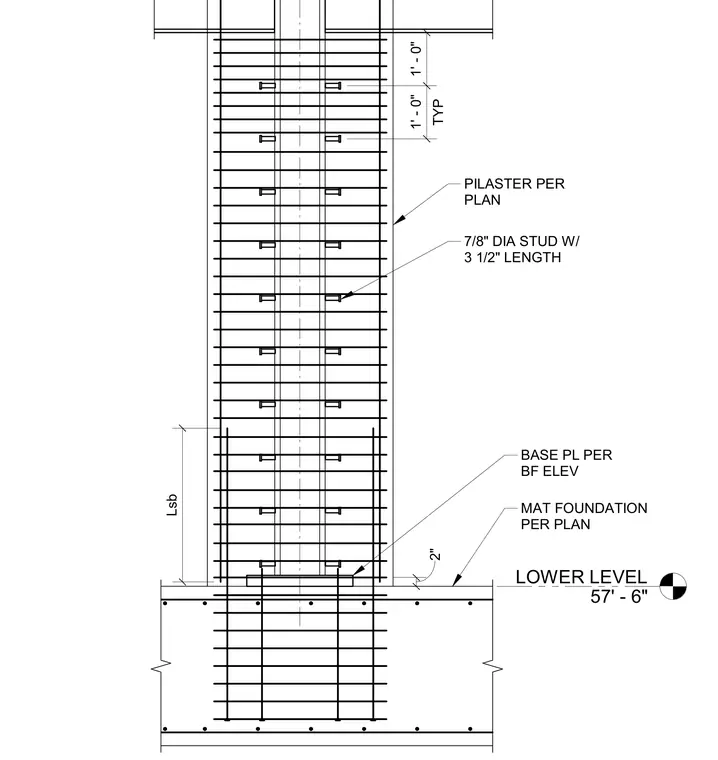

A reinforced concrete pilaster bears on a mat foundation sized per plan at the lower level elevation of 57 feet 6 inches. The assembly includes a base plate positioned per the basement floor elevation with a 2-inch clearance. Seven-eighths-inch diameter studs with a 3.5-inch length are embedded horizontally at typical 1-foot-0-inch vertical intervals. The pilaster dimensions and reinforcing layout conform to the structural plan.
LOWER LEVEL 57' - 6" MAT FOUNDATION PER PLAN TYP 1' - 0" 1' - 0" 7/8" DIA STUD W/ 3 1/2" LENGTH PILASTER PER PLAN Lsb BASE PL PER BF ELEV 2"
