A five-inch concrete slab is reinforced with number five bars at eighteen inches on center each way placed at the center of the slab. Reinforcing steel continues through a stepped transition with a two-foot dimension and a typical four-inch lap splice per sheet reference five over S zero point one. The assembly rests on compacted subgrade.

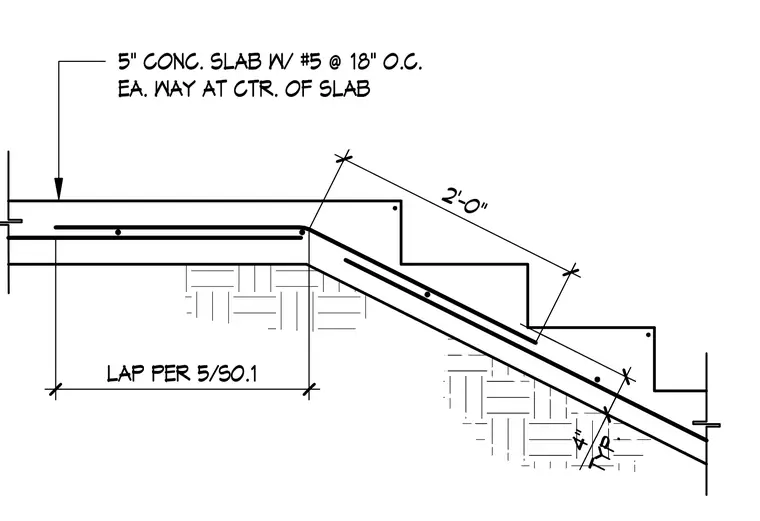

TYP. 4" LAP PER 5/S0.1 2'-0" 5" CONC. SLAB W/ #5 @ 18" O.C. EA. WAY AT CTR. OF SLAB
