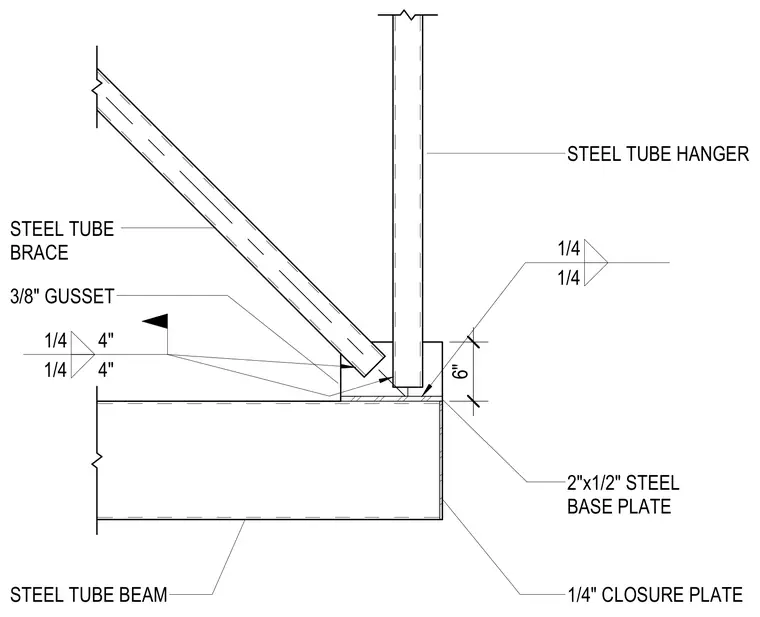

A steel tube hanger and a diagonal steel tube brace connect to a steel tube beam via a three-eighths-inch gusset plate welded to a two-inch-by-one-half-inch steel base plate. A one-quarter-inch closure plate caps the end of the steel tube beam. Fillet welds secure the structural steel components with specified sizes indicated by fractional callouts.
6" STEEL TUBE HANGER STEEL TUBE BRACE 3/8" GUSSET STEEL TUBE BEAM 1/4" CLOSURE PLATE 2"x1/2" STEEL BASE PLATE 1/4 1/4 1/4 4" 1/4 4"
