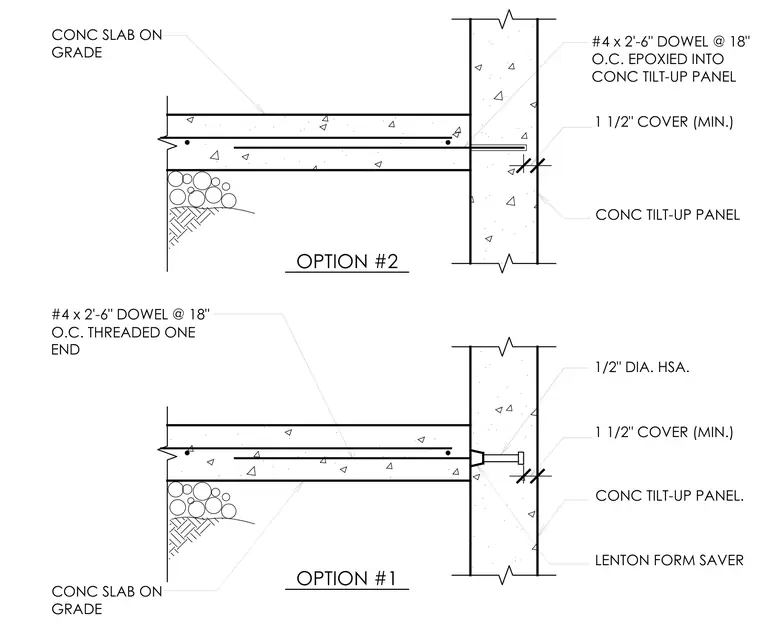

Two alternative connection details join a concrete slab on grade to a concrete tilt-up wall panel. Option number 1 utilizes a half-inch diameter HSA anchor and a Lenton Form Saver embedded in the tilt-up panel, connected with number 4 dowels at 18 inches on center threaded on one end. Option number 2 secures the slab to the wall using number 4 dowels at 18 inches on center epoxied directly into the concrete tilt-up panel. Both options maintain a minimum 1 and a half inch concrete cover.
1 1/2" COVER (MIN.) OPTION #2 OPTION #1 CONC SLAB ON GRADE CONC SLAB ON GRADE #4 x 2'-6" DOWEL @ 18" O.C. THREADED ONE END LENTON FORM SAVER CONC TILT-UP PANEL CONC TILT-UP PANEL. 1/2" DIA. HSA. #4 x 2'-6" DOWEL @ 18" O.C. EPOXIED INTO CONC TILT-UP PANEL 1 1/2" COVER (MIN.)
