Wood framing members span between roof trusses using four-by-six number one grade lumber. An intermediate two-by-six minimum wood member provides additional bracing. The purlin assembly is secured to each truss with eight total three-eighths inch diameter by five-inch long lag screws. The connection is designed to support a maximum load rating unless otherwise noted.

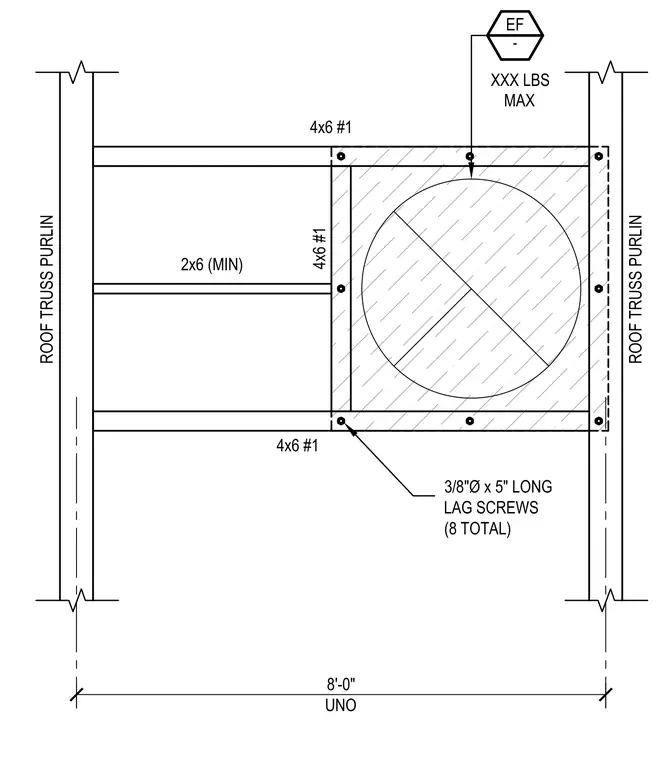

XXX LBS MAX 8'-0" UNO 4x6 #1 4x6 #1 2x6 (MIN) EF - 3/8"Ø x 5" LONG LAG SCREWS (8 TOTAL) 4x6 #1 ROOF TRUSS PURLIN ROOF TRUSS PURLIN
