Epoxy-Grouted Dowel

Materials

Concrete Reinforced Concrete Steel

Elements

Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Rebar Splice / Development Embed Plate

About this detail

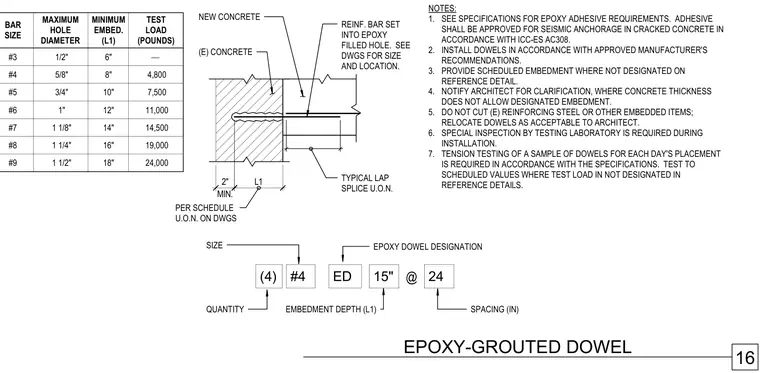

An existing concrete element receives a reinforcing bar dowel set into an epoxy-filled hole with a designated embedment depth and minimum edge distance. A new concrete pour ties into the assembly, developing a typical lap splice with the installed dowel. Accompanying notes specify ICC-ES AC308 compliance for seismic anchorage in cracked concrete, manufacturer installation recommendations, special inspection by a testing laboratory, and daily tension testing requirements. A companion table outlines maximum hole diameters, minimum embedment lengths, and test loads corresponding to bar sizes from number 3 through number 9.
