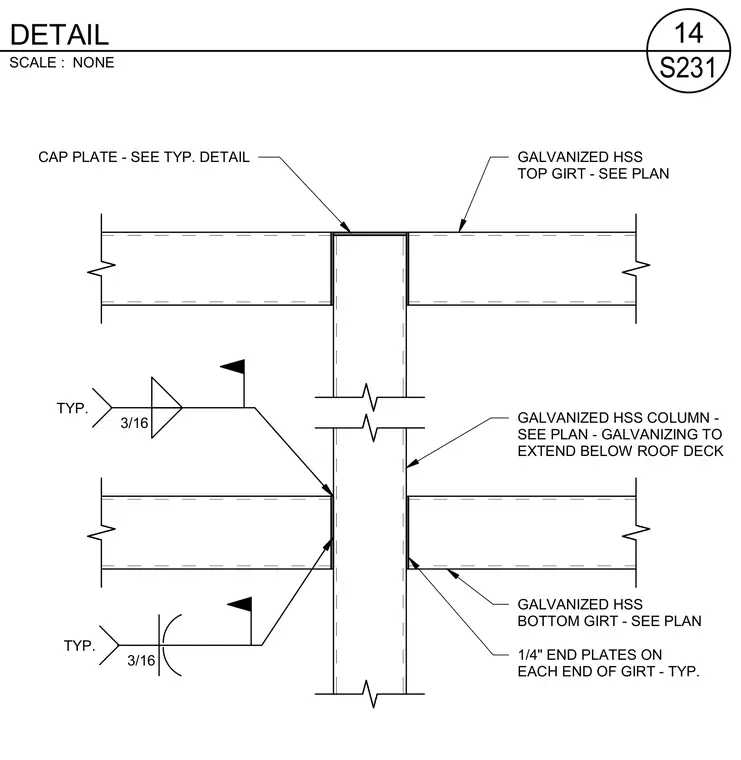

Galvanized hollow structural section top and bottom girts frame into a central galvanized hollow structural section column. Each girt features a one-quarter-inch end plate welded to its end, which is connected to the column flange with a three-sixteenths-inch typical fillet weld. A cap plate tops the column, and the column galvanizing is specified to extend below the roof deck. Girt sizes and exact placement are sized per plan.
3/16 TYP. 3/16 TYP. GALVANIZED HSS TOP GIRT - SEE PLAN GALVANIZED HSS BOTTOM GIRT - SEE PLAN GALVANIZED HSS COLUMN - SEE PLAN - GALVANIZING TO EXTEND BELOW ROOF DECK CAP PLATE - SEE TYP. DETAIL 1/4" END PLATES ON EACH END OF GIRT - TYP. SCALE : NONE S231 14 DETAIL
