Structural · S-38ZB3

Beam to Wide Flange Column Web

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Welded Connection

About this detail

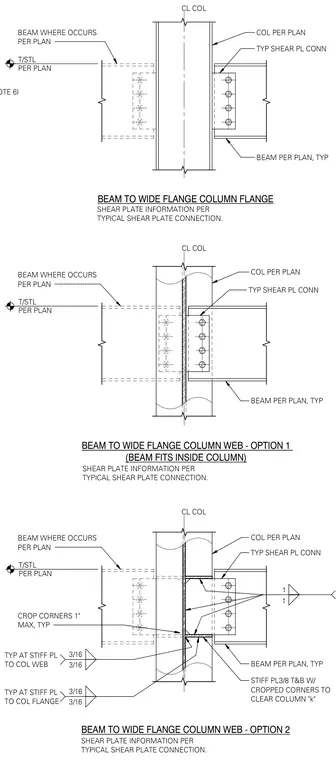

These steel framing details illustrate beam-to-column connections using shear plates and optional top and bottom stiffener plates. The supported beam frames into either the flange or the web of the wide flange column, utilizing a typical shear plate connection with bolted webs. For web connections requiring stiffening, three-eighths-inch thick top and bottom stiffener plates with cropped corners are welded to the column web and flanges with three-sixteenths-inch fillet welds. Field welds and column centerlines are indicated per structural plans.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
