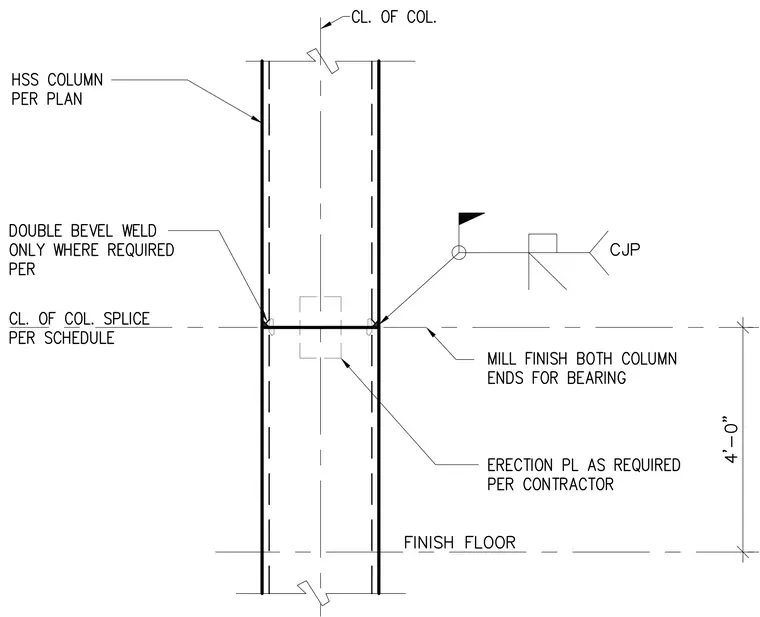

An HSS column per plan aligns along a center line with a column splice located per schedule. Both column ends require a mill finish for bearing. An erection plate is included as required per contractor. A double bevel weld is specified only where required, accompanied by a complete joint penetration weld with field weld symbols.
