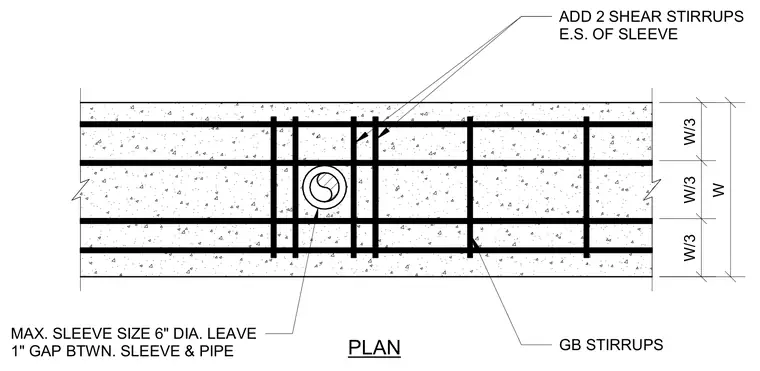

A concrete beam houses a maximum six-inch diameter sleeve with a one-inch gap maintained between the sleeve and the passing pipe. Two additional shear stirrups are placed on each side of the sleeve. Grade beam stirrups are spaced evenly across thirds of the structural member width.
W W/3 W/3 W/3 ADD 2 SHEAR STIRRUPS E.S. OF SLEEVE MAX. SLEEVE SIZE 6" DIA. LEAVE 1" GAP BTWN. SLEEVE & PIPE GB STIRRUPS PLAN
