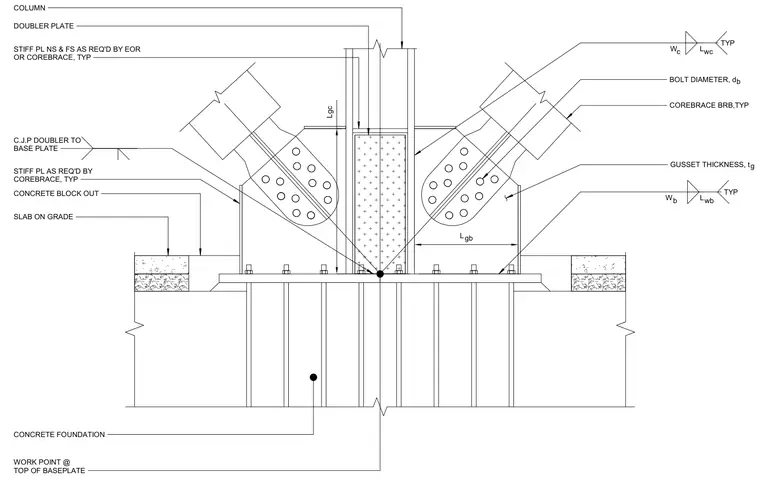

A buckling-restrained brace connects to a steel column and base plate via a gusset plate with bolted connections. Stiffener plates are provided near side and far side as required by the engineer of record or manufacturer. A doubler plate is welded to the base plate using a complete joint penetration weld. The column and base plate assembly rests on a concrete foundation with a concrete block-out at the slab on grade. Work point is located at the top of the baseplate.
DOUBLER PLATE C.J.P DOUBLER TO BASE PLATE W c W b Lwc Lwb TYP TYP STIFF PL AS REQ'D BY COREBRACE, TYP GUSSET THICKNESS, tg WORK POINT @ TOP OF BASEPLATE STIFF PL NS & FS AS REQ'D BY EOR OR COREBRACE, TYP CONCRETE BLOCK OUT SLAB ON GRADE CONCRETE FOUNDATION COLUMN COREBRACE BRB,TYP BOLT DIAMETER, db Lgc Lgb
