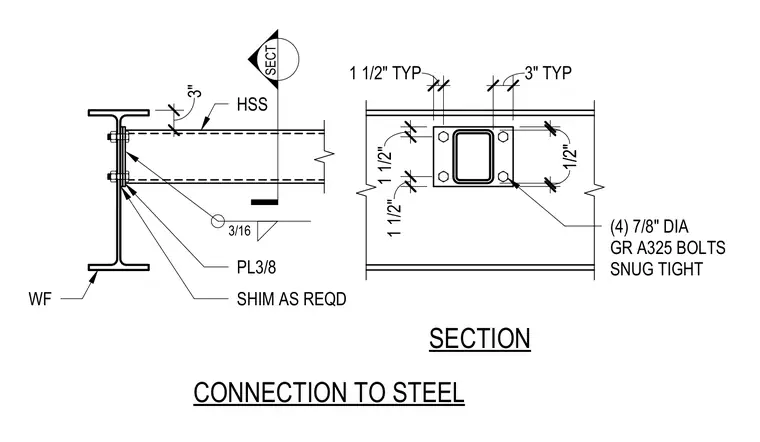

A hollow structural section member connects to the web of a wide flange steel column using a three-eighths-inch thick plate welded to the end of the hollow structural section with a three-sixteenths-inch fillet weld. The end plate is bolted to the column flange using four seven-eighths-inch diameter Grade A325 bolts installed snug tight. Shims are provided as required between the end plate and the column flange to adjust fit-up tolerances.
SECT CONNECTION TO STEEL SECTION PL3/8 SHIM AS REQD HSS WF 3/16 (4) 7/8" DIA GR A325 BOLTS SNUG TIGHT 1 1/2" 1 1/2" 1 1/2" TYP 3" TYP 1/2" 1/2" 3"
