Structural · S-38HMA

Stud Support at HSS8x4

Materials

Steel Timber / Wood

Elements

Windows Roofs Decks Bracing Connections / Plates

Connections

HSS Connection Bracing Connection Deck Attachment

About this detail

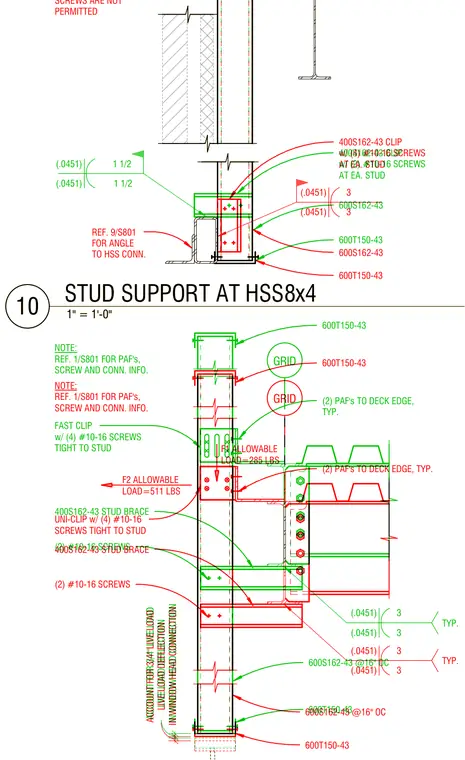

Cold-formed steel framing is supported by an HSS8x4 hollow structural section. The assembly incorporates 600S162-43 studs spaced at 16 inches on center with matching 600T150-43 tracks, fastened using 400S162-43 clips secured with number 10-16 screws. Powder-actuated fasteners attach framing components to the deck edge typical at window head connections, accounting for three-quarters of an inch live load deflection. Fast clips and uni-clips are secured tight to studs with multiple number 10-16 screws per connection. Reference notes direct to sheet S801 for specific angle-to-HSS connections, screw specifications, and fastener information.
