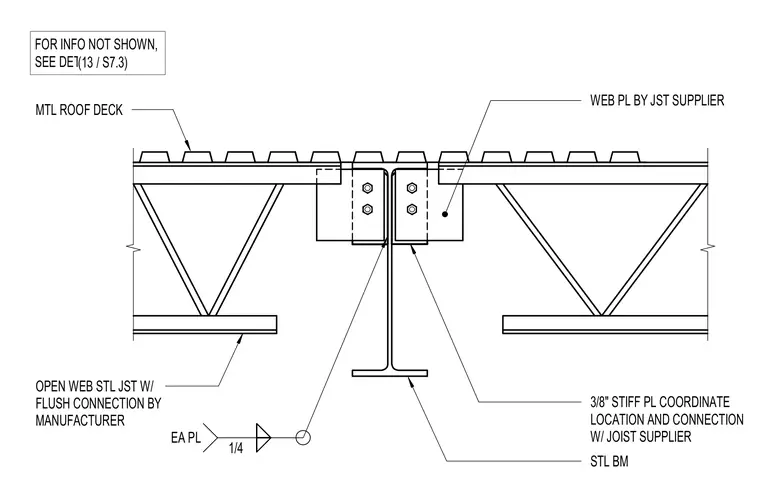

An open web steel joist with a flush connection frames into a supporting steel beam using a web plate provided by the joist supplier. A three-eighths-inch stiffener plate is welded below, with location and connection coordinated directly with the joist supplier. Metal roof deck bears across the top chords of the joists.
MTL ROOF DECK OPEN WEB STL JST W/ FLUSH CONNECTION BY MANUFACTURER STL BM WEB PL BY JST SUPPLIER 3/8" STIFF PL COORDINATE LOCATION AND CONNECTION W/ JOIST SUPPLIER 1/4 EA PL / FOR INFO NOT SHOWN, SEE DET (13 S7.3)
