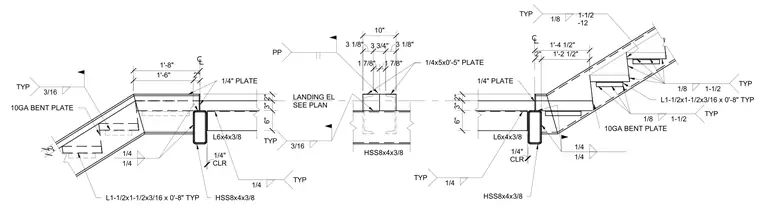

An HSS8x4x3/8 support tube ties to a landing assembly with 1/4 inch plates, L6x4x3/8 angles, and 10-gauge bent plates. The stair stringers incorporate L1-1/2x1-1/2x3/16 angles cut to 0'-8" typical lengths, welded with 1/8 inch fillet welds at 1-1/2 inch spacing. Fillet welds of 1/4 inch and 3/16 inch sizes secure the plates and structural steel members as indicated in the dimensions.
2" L1-1/2x1-1/2x3/16 x 0'-8" TYP 10GA BENT PLATE 1'-8" 1'-6" 2" 1/4" PLATE 2" 3" 6" L6x4x3/8 HSS8x4x3/8 CLR 1/4" 1/4 1/4 1/4" PLATE 2" 3" 6" L6x4x3/8 HSS8x4x3/8 1/4 TYP CLR 1/4" 1'-4 1/2" 2" 1'-2 1/2" 10GA BENT PLATE 1/8 1-1/2 TYP 1/8 1-1/2 TYP L1-1/2x1-1/2x3/16 x 0'-8" TYP 1/8 1-1/2 -12 TYP HSS8x4x3/8 3/16 TYP 10" 3 1/8" 3 3/4" 3 1/8" 1 7/8" 1 7/8" 1/4x5x0'-5" PLATE LANDING EL SEE PLAN 1/4 TYP 1/4 1/4 3/16 TYP PP
