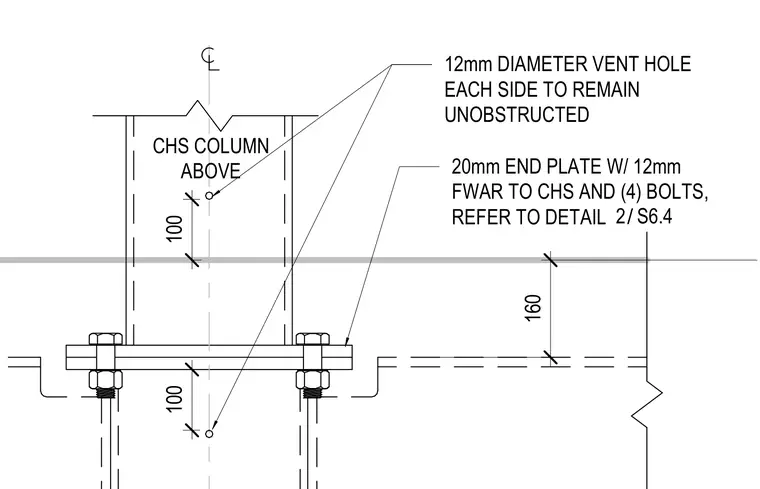

A circular hollow section steel column above connects to a supporting member via a twenty millimeter thick end plate and four bolts. A twelve millimeter diameter vent hole is provided on each side of the member and must remain unobstructed. The end plate welds to the circular hollow section with a twelve millimeter fillet weld. Connection detailing references detail two on sheet S6.4.
160 CHS COLUMN ABOVE 20mm END PLATE W/ 12mm FWAR TO CHS AND (4) BOLTS, REFER TO DETAIL / 2 S6.4 100 100 12mm DIAMETER VENT HOLE EACH SIDE TO REMAIN UNOBSTRUCTED
