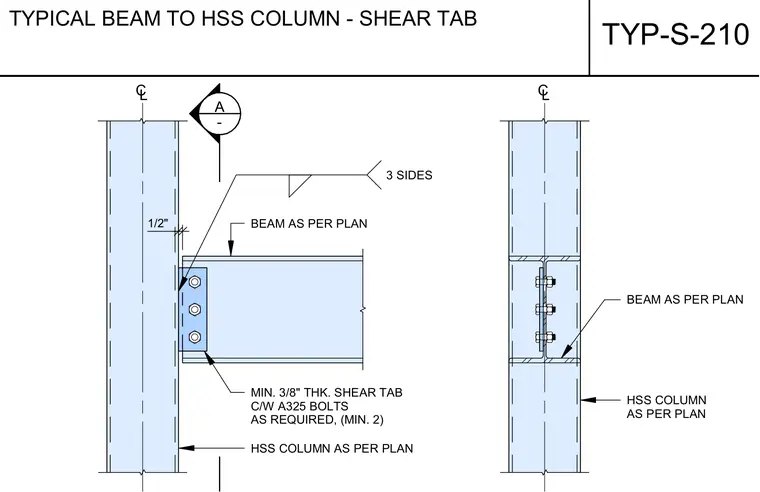

A structural steel beam frames into a hollow structural section column using a single-plate shear tab. The minimum three-eighths-inch thick shear tab is welded to the column on three sides. A minimum of two A325 structural bolts fasten the beam web to the shear tab.
BEAM AS PER PLAN HSS COLUMN AS PER PLAN 1/2" HSS COLUMN AS PER PLAN MIN. 3/8" THK. SHEAR TAB C/W A325 BOLTS AS REQUIRED, (MIN. 2) BEAM AS PER PLAN 3 SIDES A L C - L C TYP-S-210 TYPICAL BEAM TO HSS COLUMN - SHEAR TAB
