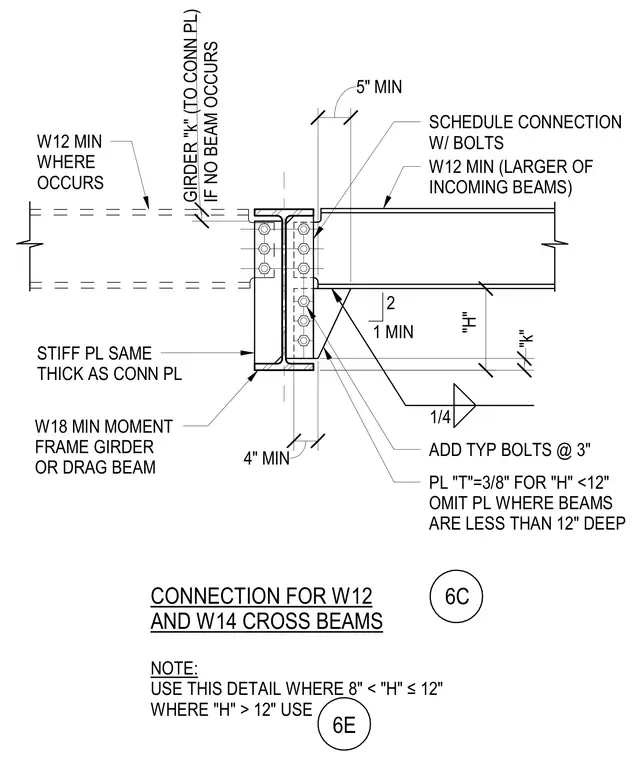

Incoming W12 or W14 cross beams frame into a W18 minimum moment frame girder or drag beam using a scheduled bolted connection and matching connection plates. A stiffener plate matching the thickness of the connection plate is provided on the girder web, with a three-eighths inch plate specified when the beam depth H is less than twelve inches and omitted for beams shallower than twelve inches. Typical bolts are spaced at three inches vertically, tied to the girder web with a one-quarter inch fillet weld. A five-inch minimum dimension applies to the top connection zone, while a four-inch minimum dimension regulates the bottom clearance. Use this detail where the depth H is greater than eight inches and less than or equal to twelve inches.
CONNECTION FOR W12 AND W14 CROSS BEAMS STIFF PL SAME THICK AS CONN PL PL "T"=3/8" FOR "H" <12" OMIT PL WHERE BEAMS ARE LESS THAN 12" DEEP W18 MIN MOMENT FRAME GIRDER OR DRAG BEAM 2 1 MIN ADD TYP BOLTS @ 3" W12 MIN WHERE OCCURS 1/4 SCHEDULE CONNECTION W/ BOLTS W12 MIN (LARGER OF INCOMING BEAMS) 4" MIN "H" "k" NOTE: USE THIS DETAIL WHERE 8" < "H" ≤12" WHERE "H" > 12" USE 6C GIRDER "k" (TO CONN PL) IF NO BEAM OCCURS 5" MIN 6E
