Structural · S-37G47

Concrete Drag Beam at Concrete Wall Detail

Materials

Elements

Columns Beams Walls Floors / Slabs Expansion / Control Joints

About this detail

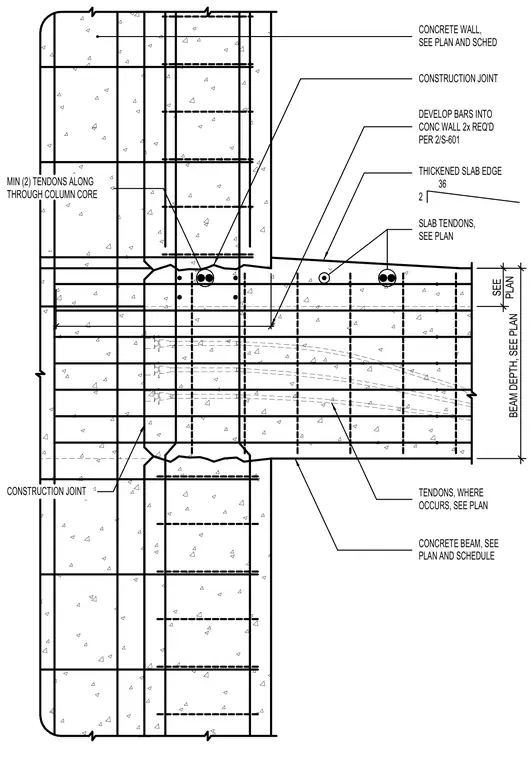

A concrete drag beam frames into a reinforced concrete wall, featuring a thickened slab edge and construction joints at the interface. Minimum two post-tensioned tendons run continuously through the column core. Reinforcing bars develop directly into the concrete wall with quantities required per structural notes. Slab tendons and beam depth are sized per plan and schedule. Additional tendons are positioned where specified.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
